Adding a FPV cam to an M600 Pro

Eshorvath · Nov 7, 2022

I tried to ask this in a post that had already started, but the site would not let me.

I have an M600Pro. Want to add a FPV cam. No other cameras are on this unit. What is the best way to do it? We're can I get the cables and cam, etc... a kit?

Thanks for any help.

IronSky1 · Nov 8, 2022

We sell these on ebay. The new version just released 11/8 combines both in one mount (not shown) , The second one has a flat bottom so it can be mounted on any RC device (car, Jet) the first has Inspire adapter using stndard GoPro style. We could make an adaptor for the M600 series though I think you can easily adapt it.

DJI Air FPV or CaddX Vista FPV Mount for Inspire Series Nose Mount - NEW ITEM
DJI Air FPV / CaddX FPV Mount for Disco-P4-Inspire -Yuneec H or Custom RC - NEW

Eshorvath · Nov 8, 2022

Eshorvath said:
I tried to ask this in a post that had already started, but the site would not let me.

I have an M600Pro. Want to add a FPV cam. No other cameras are on this unit. What is the best way to do it? We're can I get the cables and cam, etc... a kit?

Thanks for any help.

Eshorvath · Nov 8, 2022

So the first you sell has the mount and wires needed for the M600? Instructions too?

IronSky1 · Nov 8, 2022

No just the mount there are numerous posts in the Inspire Forum of users doing this.

niki · Nov 9, 2022

If no other cams on the drone why not simply mount the x3, it will be far better than any other diy solution.

Eshorvath · Nov 20, 2022

niki said:
If no other cams on the drone why not simply mount the x3, it will be far better than any other diy solution.

Because something else is mounted there

Slozukimc · Nov 20, 2022

Eshorvath said:
Because something else is mounted there

My Inspire has a fpv camera mounted in the nose cone with a transmitter and 2s lipo stuck to the tail end. On the ground I have an inexpensive flysky rcvr/monitor. Haven’t tried it in the air yet as I am just finishing fixing the broken transmitter. Cheap and seems to work.

Mike

niki · Nov 23, 2022

Eshorvath said:
Because something else is mounted there

Then simply by fpv kit and install it.

Eshorvath · Feb 3, 2023

niki said:
Then simply by fpv kit and install it.

What kit? I cannot seem to find the kit I need.

IronSky1 · Feb 3, 2023

I am currently working on Matrice series mounts. I am doing the 200 series first to accomadate front, top, side bottom and rear will post as I progress

JCFP · Feb 4, 2023

eshorvath- I feel your pain! I've been looking too, and the mount isn't the problem for me, it's the cabling. I'm not a big hobbyist guy with a ton of background on this, and have also been frustrated by the lack of answers regarding what cables and adapters to buy in order to power the camera and which to use for getting the image into the LB2 or A3 unit. Can anyone simplify and make a recommendation for just that configuration?

Slozukimc · Feb 4, 2023

Eshorvath said:
What kit? I cannot seem to find the kit I need.

The way my I1 is set up the fpv system is completely seperate from the I1. It uses it’s own 2s lipo stuck to the drone with velcro and sends it’s signal to a screen with a built in diversity rcvr or any fpv goggles as well. The parts are commonly found on ebay. Some of them are all in one units now but mine is seperate components. Here is a link to a kit similar to mine.

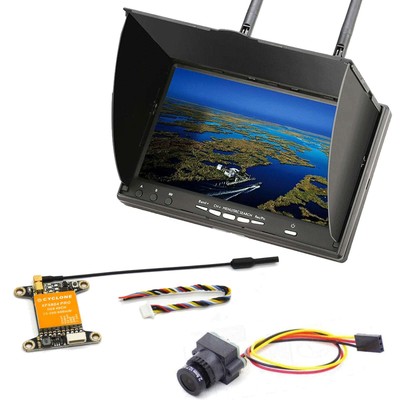

5.8GHz FPV System Kit HD Camera 7" Monitor 25-600mW Tx Built-In Battery | eBay

Antenna connector:MMCX Female( RP-SMA Male Pigtail). Antenna impedance: 50 ohm. 7" Monitor Specifications 2 x Antenna. Built-in Function: DVR, Diversity Receiver, Built-in Battery. Pitmode(power is set to OFF) - test and set your quad without interference to others.

www.ebay.com

Mike
