Rhode Micro mod to minimize Noise

[damoncooper]

I did some more experimentation to try to reduce unwanted OSMO noise. Using the Rhode Micro mic, I found that by masking off the side mic screens as shown below (I used electrical tape) and placing the mic forward and down produces the best directional results and least OSMO gimbal and camera fan noise. This makes the Rhode mic VERY directional (forward), to eliminate as much OSMO noise as possible from the source material.
The images attached are audio profiles of clips taken (in image order)
1) with built in mic,
2) with Rhode external mic WITHOUT masking off the side barrel mic screens
3) with Rhode external mic WITH masking off the side barrel mic screens
4) with Rhode external mic WITH masking off the side barrel mic screens AND after running Adobe Audition noise reduction run on the clip.

Very little-to-no audio artifacting at all. VERY happy with this simple Rhode mic modification!



[Ced007]

Very interesting. Thank you.



[Casey Preston]

Wow, I can't believe that works. I wonder what it does to the frequency response.



[damoncooper]

Wow, I can't believe that works. I wonder what it does to the frequency response.

I just makes the mic unidirectional, no impact on frequency response



[jon b]

I did some more experimentation to try to reduce unwanted OSMO noise. Using the Rhode Micro mic, I found that by masking off the side mic screens as shown below (I used electrical tape) and placing the mic forward and down produces the best directional results and least OSMO gimbal and camera fan noise. This makes the Rhode mic VERY directional (forward), to eliminate as much OSMO noise as possible from the source material.
The images attached are audio profiles of clips taken (in image order)
1) with built in mic,
2) with Rhode external mic WITHOUT masking off the side barrel mic screens
3) with Rhode external mic WITH masking off the side barrel mic screens
4) with Rhode external mic WITH masking off the side barrel mic screens AND after running Adobe Audition noise reduction run on the clip.

Very little-to-no audio artifacting at all. VERY happy with this simple Rhode mic modification!

View attachment 5522 View attachment 5523 View attachment 5524 View attachment 5525 View attachment 5526 View attachment 5527

I use a fat rubber band



[Joshua Siu]

Hi, I was directed by a user on the Dji forum since I asked about a similar issue I have with my Rode videomic go. The Rode videomic go has like a thin netting on the side of the mic, I was wondering if using tape word damage that?
Thanks



[damoncooper]

Hi, I was directed by a user on the Dji forum since I asked about a similar issue I have with my Rode videomic go. The Rode videomic go has like a thin netting on the side of the mic, I was wondering if using tape word damage that?
Thanks

Just use electrical tape as I did. Comes off easily



[Joshua Siu]

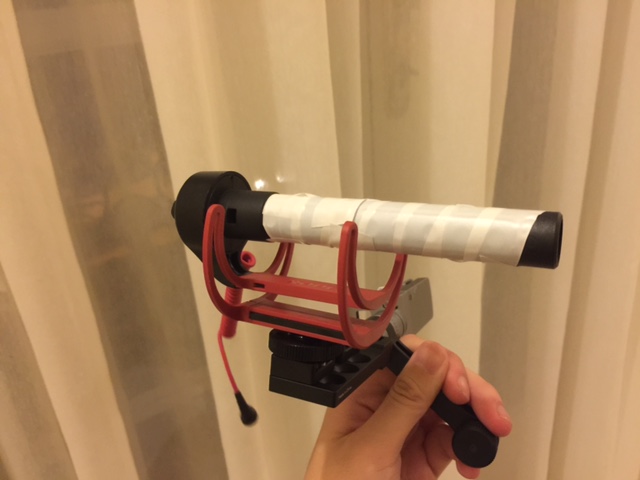

Hi so I did try the tape, but it seems like it makes even more of a rattle noise for some reason. This is how I taped the Rode Mic

IMG_2781

• Joshua Siu
• Jan 30, 2016



[damoncooper]

Hi so I did try the tape, but it seems like it makes even more of a rattle noise for some reason. This is how I taped the Rode Mic

IMG_2781

• Joshua Siu
• Jan 30, 2016

Whoops, images didn't come through



[Joshua Siu]

IMG_2781 | DJI Inspire Forum Here?



[damoncooper]

IMG_2781 | DJI Inspire Forum Here?

That's probably not the link you intended



[Joshua Siu]

Wait sorry, but can you see my image or not?



[damoncooper]

Wait sorry, but can you see my image or not?

No, I get linked to some old thread



[Joshua Siu]

IMG_2781

• Joshua Siu
• Jan 30, 2016



[Joshua Siu]

I can see the image posted on my side, wonder why you cant see it?



[damoncooper]

I can see the image posted on my side, wonder why you cant see it?

Ah ok I see it now. So the mic I have is the videomicro which is quite a bit smaller. Maybe that's the difference?



[Joshua Siu]

hmm maybe, thats an high possibility, maybe my best chance of fixing this problem is buying the videomicro : (
Thanks for the help though
